Assembly lines for Alluminum capacitors

k102

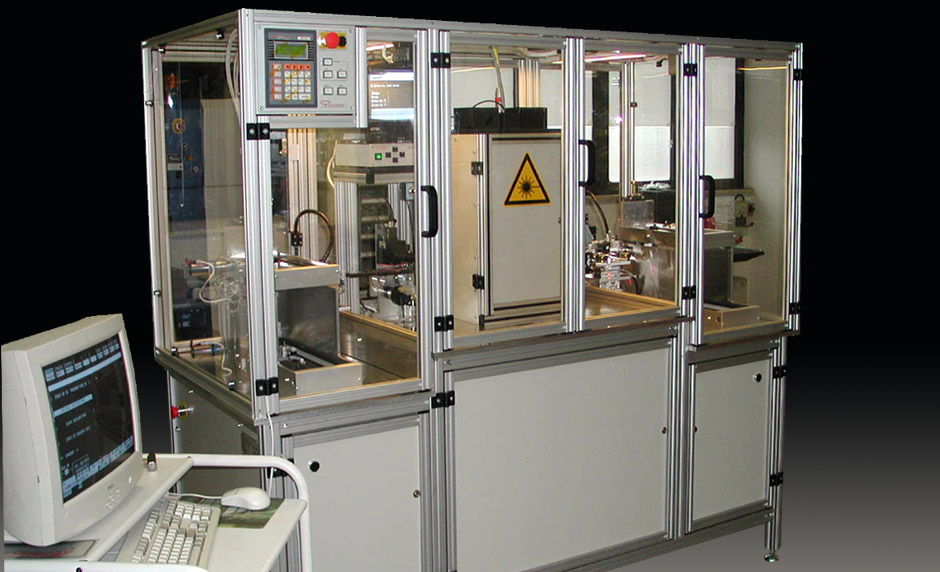

Laser welding machine for Aluminium capacitors. Highly integrated laser welding machine for Aluminium chip capacitors . The machine is fed by lead-frame in magazine . The main operation is to weld all together several layers of an Aluminium chip capacitor. Each layer has a thickness less than 0,1 mm. Every main operation is controlled by vision system. Welding speed is more than 30 welds per second.

  • Cadence:better than 18" per lead-frame

Size

length: 200 cm
width: 90 cm
height: 185 cm

Technologies

  • High speed Laser welding on aluminium foil ( Up to 90 shots per second) following an especially designed GP.synergy process
  • Lead frame cutting and forming
  • "Touch screen" operator panel based on PC
